NO.

Item name and technical data

1

GN 35-80 Computerized high speed nail making machine

( European technology type ;  max. 750 pieces nail / minute , with Siemens motor , Inverter , HMI , PLC )

Consists of 2 main section as below

Positive wire payoff machine

Nail making machine

1

Positive wire payoff loading capacity :       1,200 kg

1

Machine  control : by Siemens PLC , HMI , Inverter

2

Coil wire diameter :                max. OD850 ; Min. ID 400mm

2

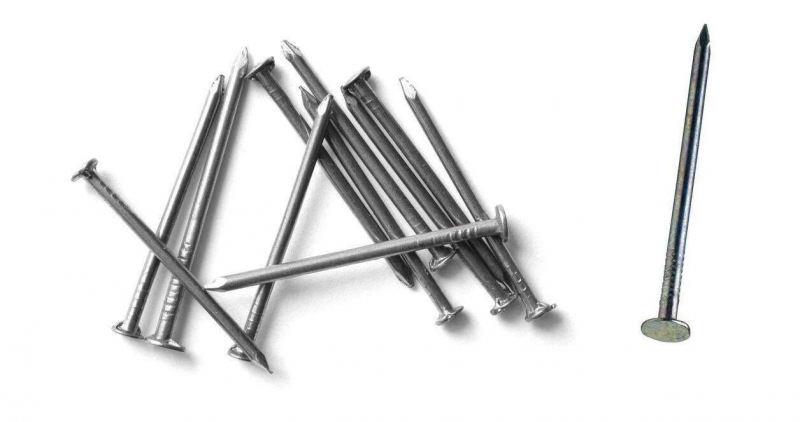

Nail diameter : 2.0mm – 3.8mm

3

Payoff wire AC motor power :       2.2kw , 4grade . 380V /3 phase

3

Nail length range : 35 – 80 mm

4

Payoff base gear box speed ratio :           1 : 30

4

Machine working speed : max. 750 pieces nail / minute

5

Payoff wire max. speed :               70 meter / minute

5

Nail die use quantity : 1 set . made by alloy steel

6

Payoff supply feed tension control :         by sensor

6

Motor power : 5.5 Kw , 4 grade , 380v/3phase/50HZ

7

Payoff tension rod height :                 1,240mm

7

Moving parts lubrication system : Auto. Oil spray

8

Dimension size : 1860 x 920mm

8

Machine Dimension size : 2160mm x 850mm

Advantage features

1

Running cost low .  base on make 2.5mm nail , 75mm length ; the nail die repairing cost max. 7 usd / ton .  electricity consume 45 unit / ton .

2

We can supply nail die manufacturer company name list to customer , so customer can easy buy from market

3

If nail is bent , or nail head has fin and no shape ; machine will auto. make alarm and stop . so operator can easy find problem nail to avoid it mix with quality nail .
